| 型號 | 尺寸 | 規格 | 材質 | 墊片 | O環 | 隔膜片 | 接口 | 螺栓 |
| VP-710 | 1/2"~8" | ANSI,JIS,DIN | PVC | PTFE | NBR | EPDM,FPM,PTFE | Flanged | SUS 304 / 316 |
| VP-711 | 1/2"~8" | ANSI,JIS,DIN | CPVC | PTFE | NBR | EPDM,FPM,PTFE | Flanged | SUS 304 / 316 |
| VP-713 | 1/2"~8" | ANSI,JIS,DIN | PVDF | PTFE | NBR | EPDM,FPM,PTFE | Flanged | SUS 304 / 316 |
| VP-714 | 1/2"~8" | ANSI,JIS,DIN | PP | PTFE | NBR | EPDM,FPM,PTFE | Flanged | SUS 304 / 316 |

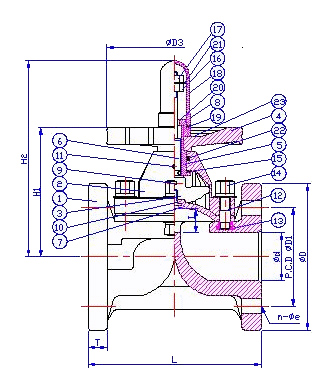

| NO. | PART | MATERIAL | Q'TY | |
| 1 | 本體(BODY) | UPVC,CPVC,PP,PVDF | 1 | |
| 2 | 上蓋(BONNET) | UPVC,CPVC,PP,PVDF,PP+GF | 1 | |
| 3 | 壓縮體(COMPRESSOR) | FC,SUS,PPG,PVDF | 1 | |
| 4 | 把手輪(HANDWHEEL) | PP | 1 | |
| 5 | 套筒(SLEEVE) | C3602,SUS | 1 | |
| 6 | 中心柱(STEM ) | C3602,SUS | 1 | |
| 7 | 隔膜(DIAPHRAGM) | EPDM,FPM,PTFE | 1 | |
| 8 | 迫緊螺帽(CAP) | UPVC,CPVC,PVDF | 1 | |
| 9 | 彈簧銷(COMPRESSOR PIN) | SUS 304 | 1 | |
| 10 | 埋入銅柱(INSERTED METAL) | C3604,SUS304 | 1 | |
| 11 | 噴筒(GREASE NIPPLE) | C3604,(65-200) | 1 | |
| 12 | 螺栓及平華司(BOLTS&WASHER) | 200mm---16set | SUS 304/316 | |
| 13 | 埋入螺帽(INSERTED NUT) | 150mm---12set | ||
| 65-125mm---8set | ||||
| 14 | 螺帽及平華司(NUTS&WASHER) | 25-50mm---6set | ||
| 15 | 止堆軸承(THRUST BEARING) | STANDARD(100-200) | 1 | |
| 16 | 阻擋螺帽(STOPPER) | SUS 304 | 1 | |
| 17 | 調整螺帽(SET NUT) | SUS 304 | 1 | |
| 18 | 透明罩(GAUGE COVER) | AS | 1 | |
| 19 | 墊片(SHEET GASKET) | EPDM | 1 | |
| 20 | 華司(SHEET RING) | SUS 304 | 1 | |
| 21 | 流量華司(SPRING WASHER) | SUP | 1 | |
| 22 | O環(O-RING) | NBR | 1 | |
| 23 | 銘牌(LOGO PLATE) | UPVC | 1 | |
|
SIZE
NOM
|
1/2"
(15
mm)
|
3/4"
(20
mm)
|
1"
(25
mm)
|
1-1/4"
(32
mm)
|
1-1/2"
(40
mm)
|
2"
(50
mm)
|
2-1/2"
(65
mm)
|
3"
(80
mm)
|
4"
(100
mm)
|
6"
(150
mm)
|
8"
(200
mm)
|
||
| JIS | ?D | 95 | 100 | 125 | 140 | 140 | 155 | 175 | 185 | 210 | 291 | 343 | |
| ?D1 | 70 | 75 | 90 | 100 | 105 | 120 | 140 | 150 | 175 | 240 | 290 | ||
| n-?e | 4-15 | 4-15 | 4-19 | 4-19 | 4-19 | 4-19 | 4-19 | 8-19 | 8-19 | 8-23 | 12-23 | ||
| L | 110 | 120 | 130 | 180 | 180 | 210 | 250 | 280 | 340 | 480 | 570 | ||
| ANSI | ?D | 89 | 98 | 108 | 127 | 127 | 152 | 178 | 191 | 229 | 291 | 343 | |
| ?D1 | 61 | 70 | 79 | 89 | 98 | 121 | 140 | 152 | 191 | 241 | 298 | ||
| n-?e | 4-16 | 4-16 | 4-16 | 4-16 | 4-16 | 4-19 | 4-19 | 4-19 | 8-19 | 8-22 | 8-22 | ||
| L | 108 | 150 | 150 | 176 | 176 | 202 | 250 | 264 | 329 | 480 | 570 | ||
| DIN | ?D | 95 | 105 | 115 | 150 | 150 | 165 | 185 | 200 | 220 | 291 | 343 | |
| ?D1 | 65 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 180 | 240 | 295 | ||
| n-?e | 4-14 | 4-14 | 4-14 | 4-18 | 4-18 | 4-18 | 4-18 | 8-18 | 8-18 | 8-22 | 8-22 | ||
| L | 130 | 160 | 160 | 16 | 16 | 230 | 290 | 310 | 350 | 480 | 570 | ||
| JIS | T | UPVC,CPVC | 12 | 13 | 13 | 16 | 16 | 20 | 22 | 22 | 22 | 24 | 30 |
| PP,PVDF | 12 | 13 | 13 | 17 | 17 | 20 | 23 | 23 | 24 | 27 | 28 | ||
| ANSI | UPVC,CPVC | 12 | 15 | 17 | 18 | 18 | 17 | 20 | 20 | 22 | 24 | 30 | |
| PP,PVDF | 13 | 15 | 18 | 20 | 20 | 18 | 21 | 21 | 24 | 27 | 28 | ||
| DIN | UPVC,CPVC | 20 | 20 | 20 | 20 | 20 | 22 | 22 | 24 | 24 | 24 | 30 | |
| PP,PVDF | 20 | 20 | 20 | 125 | 125 | 22 | 22 | 24 | 26 | 27 | 28 | ||
| ?D3 | 95 | 95 | 110 | 150 | 150 | 150 | 210 | 210 | 250 | 410 | 405 | ||
| ?d | 13 | 18 | 25 | 41 | 41 | 52 | 67 | 78 | 100 | 148 | 198 | ||
| H1 | 85 | 94 | 98 | 130 | 130 | 148 | 189 | 250 | 275 | 334 | 450 | ||
| H2 | 126 | 137 | 144 | 220 | 220 | 225 | 270 | 343 | 383 | 476 | 627 | ||
| I | 10 | 12 | 15 | 22 | 22 | 31 | 39 | 48 | 60 | 70 | 95 | ||
