首頁 》 產品展示 》 傳導.管路 》 PVC管道系統
|
型號 |
尺寸 |
規格 |
材質 |
墊座 |
O環 |
隔膜片 |
接口 |
螺栓 |
|
VP-720 |
1/2"~2" |
DIN |
PVC |
EPDM |
NBR |
EPDM, FPM, PTFE |
Spigot |
SUS 304 / 316 |
|
VP-721 |
1/2"~2" |
DIN |
CPVC |
EPDM |
NBR |
EPDM, FPM, PTFE |
Spigot |
SUS 304 / 316 |
|
VP-723 |
1/2"~2" |
DIN |
PVDF |
EPDM |
NBR |
EPDM, FPM, PTFE |
Spigot |
SUS 304 / 316 |
|
VP-724 |
1/2"~2" |
DIN |
PP |
EPDM |
NBR |
EPDM, FPM, PTFE |
Spigot |
SUS 304 / 316 |
|
VP-730 |
1/2"~2" |
ANSI, JIS, DIN |
PVC |
EPDM |
NBR / EPDM, FPM |
EPDM, FPM, PTFE |
Socket, Threaded |
SUS 304 / 316 |
|
VP-731 |
1/2"~2" |
ANSI, JIS, DIN |
CPVC |
EPDM |
NBR / EPDM, FPM |
EPDM, FPM, PTFE |
Socket, Threaded |
SUS 304 / 316 |
|
VP-733 |
1/2"~2" |
ANSI, JIS, DIN |
PVDF |
EPDM |
NBR / EPDM, FPM |
EPDM, FPM, PTFE |
Socket, Threaded |
SUS 304 / 316 |
|
VP-734 |
1/2"~2" |
ANSI, JIS, DIN |
PP |
EPDM |
NBR / EPDM, FPM |
EPDM, FPM, PTFE |
Socket, Threaded |
SUS 304 / 316 |
|

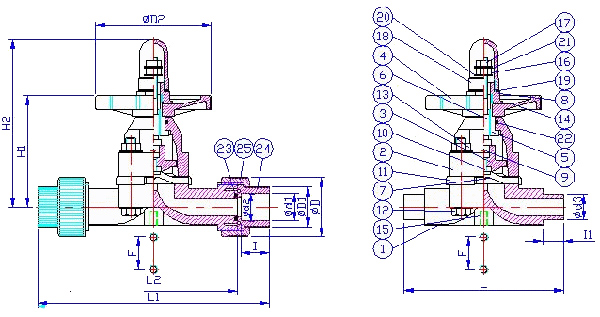

NO. |
PART |
MATERIAL |
Q'TY |
| 1 | 本體(BODY) | UPVC,CPVC,PP,PVDF | 1 |
| 2 | 上蓋(BONNET) | UPVC,CPVC,PP,PVDF,PP+GF | 1 |
| 3 | 壓縮體(COMPRESSOR) | FC,SUS | 1 |
| 4 | 把手輪(HANDWHEEL) | PP | 1 |
| 5 | 套銅(SLEEVE) | C3602 | 1 |
| 6 | 中心柱(STEM ) | C3602 | 1 |
| 7 | 隔膜(DIAPHRAGM) | EPDM,FPM,PTFE | 1 |
| 8 | 迫緊螺帽(CAP) | UPVC,CPVC,PVDF,PP+GF | 1 |
| 9 | 彈簧銷(COMPRESSOR PIN) | SUS 304 | 1 |
| 10 | 埋入銅柱(INSERTED METAL) | C3602,SUS304 | 1 |
| 11 | 壓板(RUBBER LINER) | SUS 304 | 1 |
| 12 | 螺栓及平華司(BOLTS&WASHERS) | SUS 304 | 4 |
| 13 | 螺帽及平華司(NUTS&WASHERS) | SUS 304 | 4 |
| 14 | 銘牌(NAME PLATE) | PVC | 1 |
| 15 | 埋入銅柱(BOTTOM NUT) | C3604 | 2 |
| 16 | 阻擋螺帽(STOPPER) | SUS 304 | 1 |
| 17 | 調整螺帽(SET NUT) | SUS 304 | 1 |
| 18 | 透明罩(GAUGE CIVER) | AS | 1 |
| 19 | 墊片(SHEET GASKET) | EPDM | 1 |
| 20 | 華司(SHEET RING) | SUS 304 | 1 |
| 21 | 流量華司(INDICATIVE WASHER) | ABS | 1 |
| 22 | O環(O-RING) | NBR | 1 |
| 23 | O環(O-RING) | EPDM,FPM | 2 |
| 24 | 特普(END CONNECTOR) | UPVC,CPVC,PP.PVDF | 2 |
| 25 | 螺帽(UNION NUT) | UPVC,CPVC,PP.PVDF | 2 |
|
SIZE NOM |
1/2" (15mm) |
3/4" (20mm) |
1" (25mm) |
1-1/2" (40mm) |
2" (50mm) |
|
|
JIS |
?d1 |
22.3 |
26.3 |
32.33 |
48.46 |
60.56 |
|
?d2 |
21.7 |
25.7 |
31.67 |
47.54 |
59.44 |
|
|
I |
22.2 |
25.4 |
28.6 |
34.9 |
38.1 |
|
|
ANSI |
?d1 |
21.54 |
26.87 |
33.65 |
48.56 |
60.63 |
|
?d2 |
21.23 |
26.57 |
33.27 |
48.11 |
60.17 |
|
|
I |
22.22 |
25.4 |
28.58 |
34.93 |
38.1 |
|
|
DIN |
?d1 |
20.3 |
25.3 |
32.3 |
50.3 |
63.3 |
|
?d2 |
20.1 |
25.1 |
32.1 |
50.1 |
63.1 |
|
|
I |
16 |
19 |
22 |
31 |
38 |
|
|
BS |
?d1 |
21.5 |
26.9 |
33.7 |
48.4 |
60.5 |
|
?d2 |
21.3 |
29.7 |
33.5 |
48.2 |
60.3 |
|
|
I |
16.5 |
19.5 |
22.5 |
30 |
36 |
|
|
thd./in |
NPT |
14 |
14 |
11.5 |
11.5 |
11.5 |
|
BSPT |
14 |
14 |
11 |
11 |
11 |
|
|
?D |
46 |
55 |
66 |
97 |
120 |
|
|
?D1 |
31 |
37 |
44 |
64 |
78 |
|
|
?D2 |
95 |
95 |
110 |
150 |
150 |
|
|
?d3 |
20 |
25 |
32 |
50 |
63 |
|
|
L2 |
130 |
150 |
160 |
200 |
230 |
|
|
L1 |
180 |
207 |
224 |
276 |
317 |
|
|
L |
124 |
144 |
154 |
194 |
224 |
|
|
H1 |
128 |
138 |
144 |
220 |
225 |
|
|
H2 |
86 |
95 |
98 |
150 |
148 |
|
|
I1 |
PVC |
16 |
19 |
22 |
31 |
34 |
|
PP,PVDF |
14.5 |
16 |
18 |
23.5 |
27.5 |
|
|
S |
11 |
11 |
11 |
15 |
15 |
|
|
F |
25 |
25 |
25 |
45 |
45 |
|
|
M |
M6 |
M6 |
M6 |
M8 |
M8 |
|
