| 型號 | 尺寸 | 規格 | 材質 | 接口 |
| VP-260 | 1/2"~12" | ANSI, JIS, DIN | PVC | Socket, Threaded / Flanged |
| VP-261 | 1/2"~12" | ANSI, JIS, DIN | CPVC | Socket, Threaded / Flanged |
|
SIZE
Nom
|
3/8"
(10
mm)
|
1/2"
(15
mm)
|
3/4"
(20
mm)
|
1"
(25
mm)
|
1-1/4"
(32
mm)
|
1-1/2"
(40
mm)
|
2"
(50
mm)
|
2-1/2"
(65
mm)
|
3"
(80
mm)
|
4"
(100
mm)
|
5"
(125
mm)
|
6"
(150
mm)
|
8"
(200
mm)
|
10"
(250
mm)
|
12"
(300
mm)
|
|

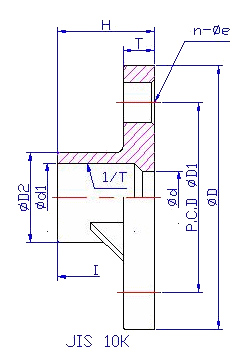

| JIS | ?D | 90 | 96.5 | 100 | 125.5 | 135 | 140.5 | 155 | 175.5 | 186 | 210 | 250 | 280 | 329.5 | 404.5 | 445 |
| ?D1 | 65 | 70 | 75 | 90 | 100 | 105 | 120 | 140 | 150 | 175 | 210 | 240 | 290 | 355 | 400 | |
| ?D2 | 26 | 31.5 | 35 | 42.5 | 48.5 | 61 | 74 | 90 | 106 | 132 | 158 | 186 | 238 | 289 | 341 | |
| ?d | 15 | 18 | 22 | 25 | 30 | 41 | 53 | 67 | 78 | 100 | 126 | 146.5 | 196 | 245 | 298 | |
| ?d1 | 18.4 | 22.4 | 26.45 | 32.55 | 38.6 | 48.7 | 60.8 | 76.6 | 89.6 | 114.7 | 140.8 | 166 | 217 | 267.7 | 318.7 | |
| H | 30 | 35 | 40 | 47 | 50.5 | 61.5 | 71 | 70 | 73.5 | 93 | 114 | 141.5 | 160 | 167.5 | 167 | |
| T | 14 | 14 | 15 | 15 | 16 | 16 | 20 | 22 | 23 | 22.5 | 24.5 | 26.5 | 29 | 31.5 | 30 | |
| I | 26 | 30 | 35 | 40 | 44 | 55 | 63 | 61 | 64 | 84 | 104 | 132 | 145 | 155 | 155 | |
| n-?e | 4-15 | 4-15 | 4-15 | 4-19 | 4-19 | 4-19 | 4-19 | 4-19 | 8-19 | 8-19 | 8-23 | 8-23 | 12-23 | 12-22 | 16-25 | |
| 1/T | 1/30 | 1/34 | 1/34 | 1/34 | 1/34 | 1/37 | 1/37 | 1/48 | 1/49 | 1/56 | 1/58 | 1/63 | 1/50 | 1/55 | 1/55 | |

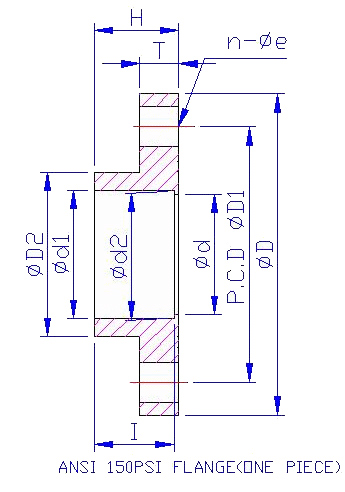

| ANSI | ?D | - | 88.6 | 97.5 | 108 | 117 | 127 | 152 | 179 | 190 | 228.6 | 254 | 280 | 342 | 405 | 480 |
| ?D1 | - | 61 | 70 | 79 | 89 | 98 | 121 | 140 | 152 | 191 | 216 | 241 | 298 | 362 | 432 | |
| ?D2 | - | 33 | 40 | 48 | 57 | 65 | 78 | 92 | 109 | 139 | 167 | 186 | 255 | 291 | 343 | |
| ?d | - | 15 | 25 | 31 | 40 | 46 | 57.5 | 70 | 78 | 111.5 | 136 | 166 | 209 | 246 | 296 | |
| ?d1 | - | 21.54 | 26.87 | 33.65 | 42.42 | 48.56 | 60.63 | 73.38 | 89.31 | 114.76 | 141.81 | 168.83 | 219.84 | 273.81 | 324.61 | |
| ?d2 | - | 21.23 | 26.57 | 33.27 | 42.04 | 48.11 | 60.17 | 72.85 | 88.7 | 114.07 | 141 | 168 | 218.7 | 272.67 | 323.47 | |
| H | - | 25 | 29 | 31.7 | 35 | 38 | 41.3 | 47.6 | 50.8 | 61 | 82.5 | 142 | 131 | 170 | 173 | |
| T | - | 11 | 12 | 14 | 16 | 17.5 | 18.5 | 21.5 | 22.5 | 24.5 | 28.5 | 26 | 30 | 33 | 34 | |
| I | - | 22.22 | 25.4 | 28.58 | 31.75 | 34.93 | 38.1 | 44.45 | 47.63 | 57.15 | 66.7 | 132 | 110 | 155 | 155 | |
| n-?e | - | 4-16 | 4-16 | 4-16 | 4-16 | 4-16 | 4-19 | 4-19 | 4-19 | 8-19 | 8-22 | 8-22 | 8-22 | 12-25 | 12-25 | |

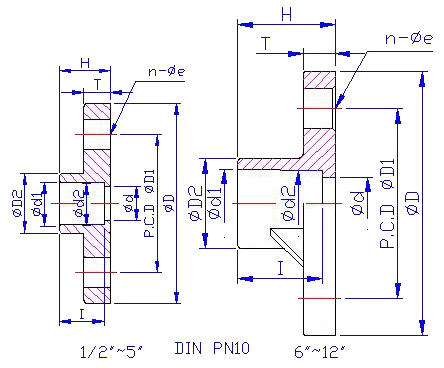

| DIN | ?D | - | 95 | 105 | 115 | 140 | 150 | 164 | 185 | 200 | 220 | 254 | 280 | 340 | 396 | 445 |
| ?D1 | - | 65 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 350 | 400 | |
| ?D2 | - | 28 | 33 | 41 | 50 | 61 | 76 | 90 | 108 | 131 | 167 | 186 | 255 | 290 | 362 | |
| ?d | - | 16 | 21 | 28 | 36 | 45 | 57 | 69.5 | 82 | 103 | 136 | 146.5 | 215 | 240 | 303 | |
| ?d1 | - | 20.3 | 25.3 | 32.3 | 40.3 | 50.3 | 63.3 | 75.35 | 90.5 | 110.6 | 140.85 | 160.85 | 226.25 | 251.45 | 316.85 | |
| ?d2 | - | 19.9 | 24.9 | 31.9 | 39.9 | 49.9 | 62.9 | 74.9 | 89.9 | 109.9 | 140.05 | 160.05 | 225.05 | 250.05 | 315.05 | |
| H | - | 24 | 21.5 | 24.5 | 28 | 33.5 | 41 | 46 | 55 | 65 | 82.5 | 141.5 | 131 | 149 | 182 | |
| T | - | 12.5 | 14 | 14 | 14 | 16 | 16 | 16 | 18 | 18 | 28.5 | 26.5 | 30 | 32 | 32 | |
| I | - | 21 | 19 | 22 | 26 | 31 | 38 | 43.5 | 50.5 | 60.5 | 77 | 132 | 119 | 131 | 164 | |
| n-?e | - | 4-14 | 4-14 | 4-14 | 4-18 | 4-18 | 4-18 | 4-18 | 8-18 | 8-18 | 8-23 | 8-23 | 8-23 | 12-23 | 12-23 | |
