| 型號 | 尺寸 | 規格 | 材質 | 止漏墊 | 接口 |
| VP-460 | 1/2"~4" | ANSI, JIS, DIN | PVC | EPDM, FPM, NBR | Socket, Threaded |
| VP-461 | 1/2"~4" | ANSI, JIS, DIN | CPVC | EPDM, FPM, NBR | Socket, Threaded |
| VP-463 | 1/2"~4" | ANSI, JIS, DIN | PVDF | EPDM, FPM, NBR | Socket, Threaded |
| VP-464 | 1/2"~4" | ANSI, JIS, DIN | PP | EPDM, FPM, NBR | Socket, Threaded |
| VP-470 | 1/2"~4" | ANSI, JIS, DIN | PVC | EPDM, FPM, NBR | Socket, Threaded |

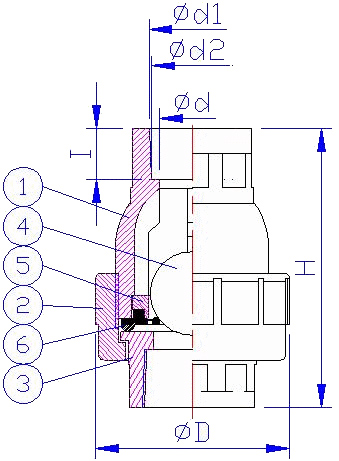

| NO. | PART | MATERIAL | Q'TY |
| 1 | 本體(BODY) | UPVC,CPVC,PP,PVDF | 1 |
| 2 | 螺帽(UNION NUT) | UPVC,CPVC,PP,PVDF | 1 |
| 3 | 特普(CONNECTOR ) | UPVC,CPVC,PP,PVDF | 1 |
| 4 | 球(BALL) | UPVC,CPVC,PP,PVDF | 1 |
| 5 | 卡環(GLAND) | UPVC,CPVC,PP,PVDF | 1 |
| 6 | 止逆座(SEAL) | EPDM,FPM,NBR | 1 |
| 7 | 法蘭片(FLANGE) | UPVC,CPVC,PP,PVDF | 2 |
| 8 | 濾網(FILTER) | UPVC,CPVC,PP,PVDF | 1 |
| SIZE NOM | 1/2" (15mm) | 3/4" (20mm) | 1" (25mm) | 1-1/4" (32mm) | 1-1/2" (40mm) | 2" (50mm) | 2-1/2" (65mm) | 3" (80mm) | 4" (100mm) | |
| JIS | ?d1 | 22.3 | 26.3 | 32.33 | 38.43 | 48.46 | 60.56 | 76.6 | 89.6 | 114.7 |
| ?d2 | 21.7 | 25.7 | 31.67 | 37.57 | 47.54 | 59.44 | 75.87 | 88.83 | 113.98 | |
| I | 22.2 | 25.4 | 28.6 | 31.8 | 34.9 | 38.1 | 44.45 | 63 | 69 | |
| ANSI | ?d1 | 21.54 | 26.87 | 33.65 | 42.42 | 48.56 | 60.63 | 73.38 | 89.31 | 114.76 |
| ?d2 | 21.23 | 26.57 | 33.27 | 42.04 | 48.11 | 60.17 | 72.85 | 88.7 | 114.07 | |
| I | 22.22 | 25.4 | 28.58 | 31.75 | 34.93 | 38.1 | 44.45 | 47.63 | 57.15 | |
| DIN | ?d1 | 20.3 | 25.3 | 32.3 | 40.3 | 50.3 | 63.3 | 75.3 | 90.3 | 110.4 |
| ?d2 | 20.1 | 25.1 | 32.1 | 40.1 | 50.1 | 63.1 | 75.1 | 90.1 | 110.1 | |
| I | 16 | 19 | 22 | 26 | 31 | 38 | 44 | 51 | 61 | |
| thd./in | NPT | 14 | 14 | 11.5 | 11.5 | 11.5 | 11.5 | 8 | 8 | 8 |
| BSPT | 14 | 14 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | |
| ?D | 50 | 62 | 71 | 96.8 | 96.8 | 107 | 163 | 163 | 225 | |
| ?d | 13 | 20 | 25 | 25 | 40 | 50 | 70 | 77 | 102 | |
| H | 93 | 107.5 | 119.5 | 154 | 154 | 179 | 263 | 263 | 321 | |

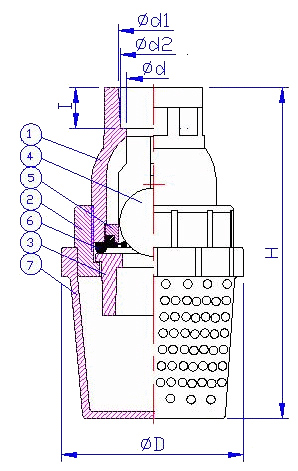

| NO. | PART | MATERIAL | Q'TY |
| 1 | 本體(BODY) | UPVC,CPVC,PP,PVDF | 1 |
| 2 | 螺帽(UNION NUT) | UPVC,CPVC,PP,PVDF | 1 |
| 3 | 特普(CONNECTOR) | UPVC,CPVC,PP,PVDF | 1 |
| 4 | 球(BALL) | UPVC,CPVC,PP,PVDF | 1 |
| 5 | 卡環(GLAND) | UPVC,CPVC,PP,PVDF | 1 |
| 6 | 止逆座(SEAL) | EPDM,FPM,NBR | 1 |
| 7 | 法蘭片(FLANGE) | UPVC,CPVC,PP,PVDF | 2 |
| 8 | 濾網(FILTER) | UPVC,CPVC,PP,PVDF | 1 |
| SIZE NOM | 1/2" (15mm) | 3/4" (20mm) | 1" (25mm) | 1-1/4" (32mm) | 1-1/2" (40mm) | 2" (50mm) | 2-1/2" (65mm) | 3" (80mm) | 4" (100mm) | |
| JIS | ?D | 95.5 | 100 | 124.5 | 134.5 | 140.5 | 155 | 175 | 184.5 | 209.5 |
| ?D1 | 70 | 75 | 90 | 100 | 105 | 120 | 140 | 150 | 175 | |
| n-?e | 4-15 | 4-15 | 4-19 | 4-19 | 4-19 | 4-19 | 4-19 | 8-19 | 8-19 | |
| H | 111 | 138 | 152 | 190 | 190 | 219 | 307 | 308 | 364 | |
| ANSI | ?D | 89 | 98 | 108 | 117 | 127 | 155 | 178.5 | 190.5 | 230 |
| ?D1 | 60 | 70 | 79 | 89 | 98 | 121 | 140 | 152 | 191 | |
| n-?e | 4-16 | 4-16 | 4-16 | 4-16 | 4-16 | 4-19 | 4-19 | 4-19 | 8-19 | |
| H | 105 | 132 | 149 | 184 | 188 | 219 | 307 | 309 | 369 | |
| DIN | ?D | 95.5 | 100 | 124.5 | 134.5 | 140.5 | 155 | 175 | 184.5 | 209.5 |
| ?D1 | 65 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 180 | |
| n-?e | 4-15 | 4-15 | 4-15 | 4-19 | 4-19 | 4-19 | 4-19 | 8-18 | 8-18 | |
| H | 111 | 138 | 150 | 190 | 190 | 219 | 307 | 308 | 364 | |

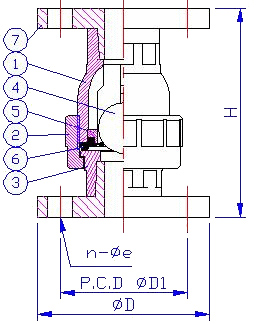

| NO. | PART | MATERIAL | Q'TY |
| 1 | 本體(BODY) | UPVC,CPVC,PP,PVDF | 1 |
| 2 | 螺帽(UNION NUT) | UPVC,CPVC,PP,PVDF | 1 |
| 3 | 特普(CONNECTOR) | UPVC,CPVC,PP,PVDF | 1 |
| 4 | 球(BALL) | UPVC,CPVC,PP,PVDF | 1 |
| 5 | 卡環(GLAND) | UPVC,CPVC,PP,PVDF | 1 |
| 6 | 止逆座(SEAL) | EPDM,FPM,NBR | 1 |
| 7 | 法蘭片(FLANGE) | UPVC,CPVC,PP,PVDF | 2 |
| 8 | 濾網(FILTER) | UPVC,CPVC,PP,PVDF | 1 |
| SIZE NOM | 1/2" (15mm) | 3/4" (20mm) | 1" (25mm) | 1-1/4" (32mm) | 1-1/2" (40mm) | 2" (50mm) | 2-1/2" (65mm) | 3" (80mm) | 4" (100mm) | |
| JIS | ?d1 | 22.3 | 26.3 | 32.33 | 38.43 | 48.46 | 60.56 | 76.6 | 89.6 | 114.7 |
| ?d2 | 21.7 | 25.7 | 31.67 | 37.57 | 47.54 | 59.44 | 75.87 | 88.83 | 113.98 | |
| I | 22.2 | 25.4 | 28.6 | 31.8 | 34.9 | 38.1 | 44.45 | 63 | 69 | |
| ANSI | ?d1 | 21.54 | 26.87 | 33.65 | 42.42 | 48.56 | 60.63 | 73.38 | 89.31 | 114.76 |
| ?d2 | 21.23 | 26.57 | 33.27 | 42.04 | 48.11 | 60.17 | 72.85 | 88.7 | 114.07 | |
| I | 22.22 | 25.4 | 28.58 | 31.75 | 34.93 | 38.1 | 44.45 | 47.63 | 57.15 | |
| DIN | ?d1 | 20.3 | 25.3 | 32.3 | 40.3 | 50.3 | 63.3 | 75.3 | 90.3 | 110.4 |
| ?d2 | 20.1 | 25.1 | 32.1 | 40.1 | 50.1 | 63.1 | 75.1 | 90.1 | 110.1 | |
| I | 16 | 19 | 22 | 26 | 31 | 38 | 44 | 51 | 61 | |
| thd./in | NPT | 14 | 14 | 11.5 | 11.5 | 11.5 | 11.5 | 8 | 8 | 8 |
| BSPT | 14 | 14 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | |
| ?D | 56 | 56 | 73 | 91 | 91 | 107 | 154 | 154 | 178 | |
| ?d | 35 | 35 | 45 | 52 | 60 | 73 | 70 | 77 | 102 | |
| H | 38 | 38 | 48 | 55 | 63 | 76 | 310 | 310 | 382 | |
